Multi N7-380 m18r wa

Product specification

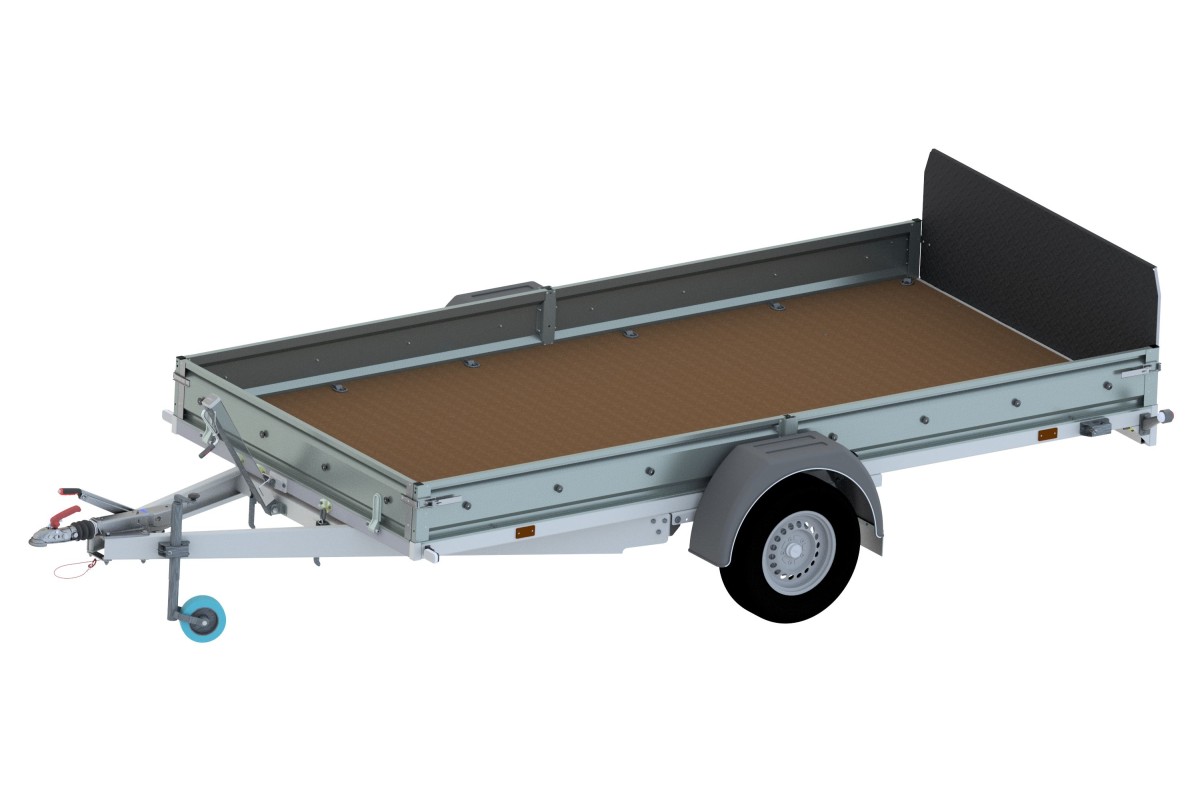

A trailer for transporting machinery, ATVs or snowmobiles

• The trailer in version “A” has a stronger jack screw and 4 additional load fastening tape (rope)
• Large loading area of 3800 x 1800 mm,

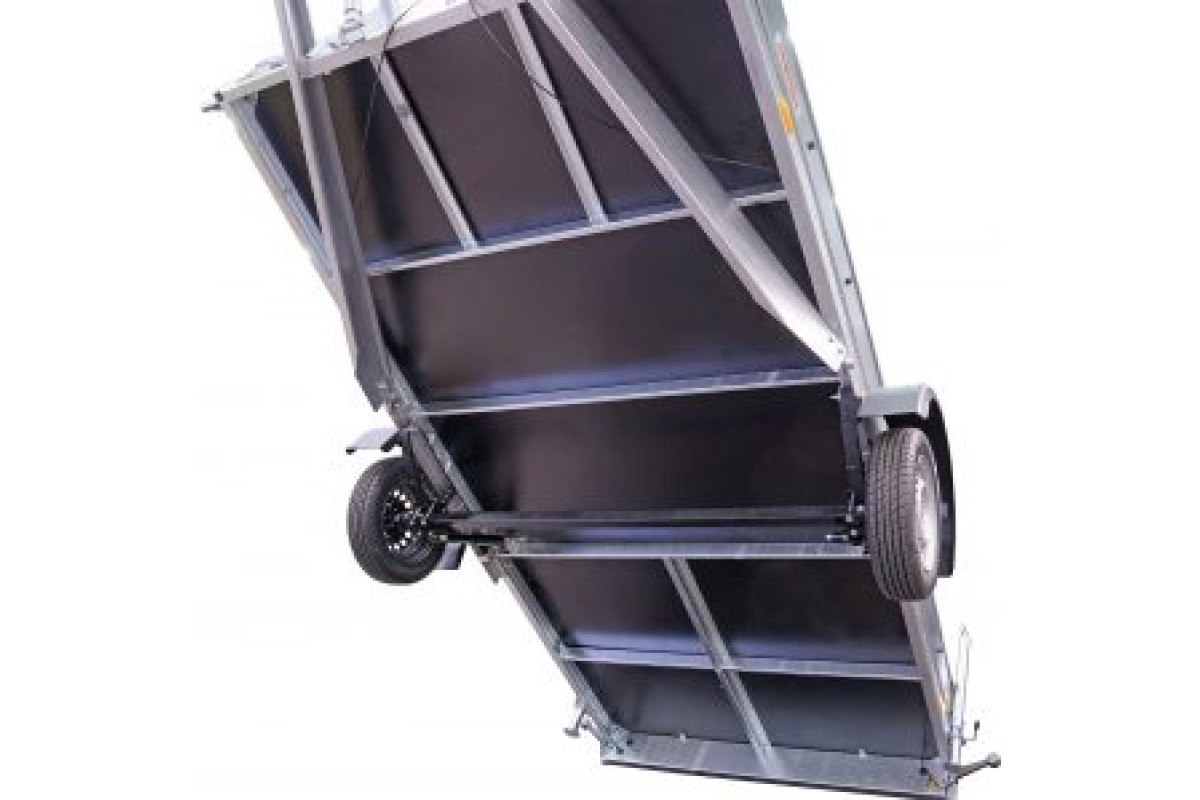

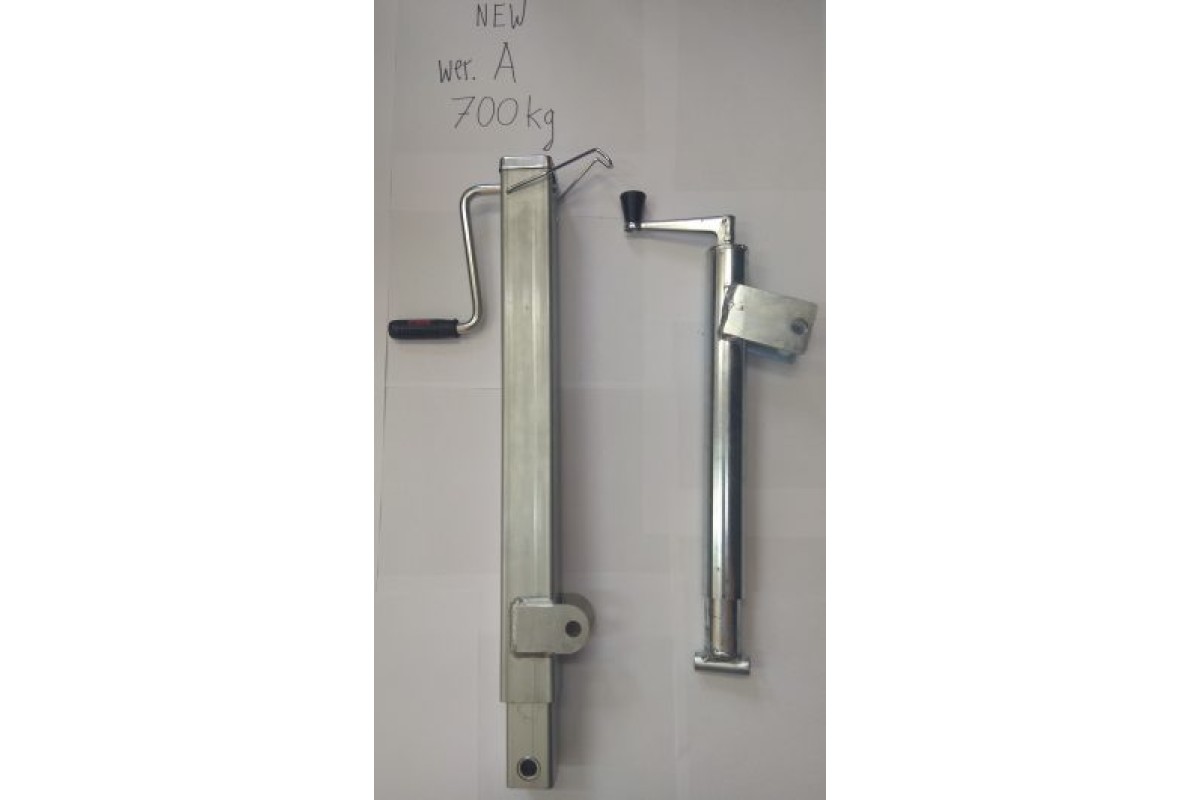

• The trailer platform can be titled and is equipped with a jack screw 700 kg,
• The trailer is equipped with a 15 mm thick anti-slip plywood floor,
• The rear sidewall constitutes also a ramp,
• Profiled 250-mm sidewalls are made of high quality zinc-plated steel sheet. They are profiled to be stiff and resistant to impact, and to look attractive. The front and the rear sidewalls can be opened.
• The sidewalls can be easily dismantled. The user gets a flat platform for transporting larger loads,
• Load fastening tape (rope) handles are located in the corners (4 pcs) and in the middle of the platform (8 pcs). Because they are fitted to the floor and to the welded frame, the load can be secured in a much better way.
• High durability of the trailer design is ensured by a fully welded frame, cold-bent frame sections, four lateral beams and a strong welded V-drawbar. All components are hot-dip galvanized,
• Multifunction lamps are installed inside the rear beam. This makes them protected against damage, moisture and mud. Wiring connections are protected in the best possible way to guarantee maintenance-free operation for years,
• The trailer is perfect for transporting machinery, ATVs or snowmobiles,
• Standard equipment of trailers includes: a jockey wheel with a clamp, two clamps at the back of the trailer,

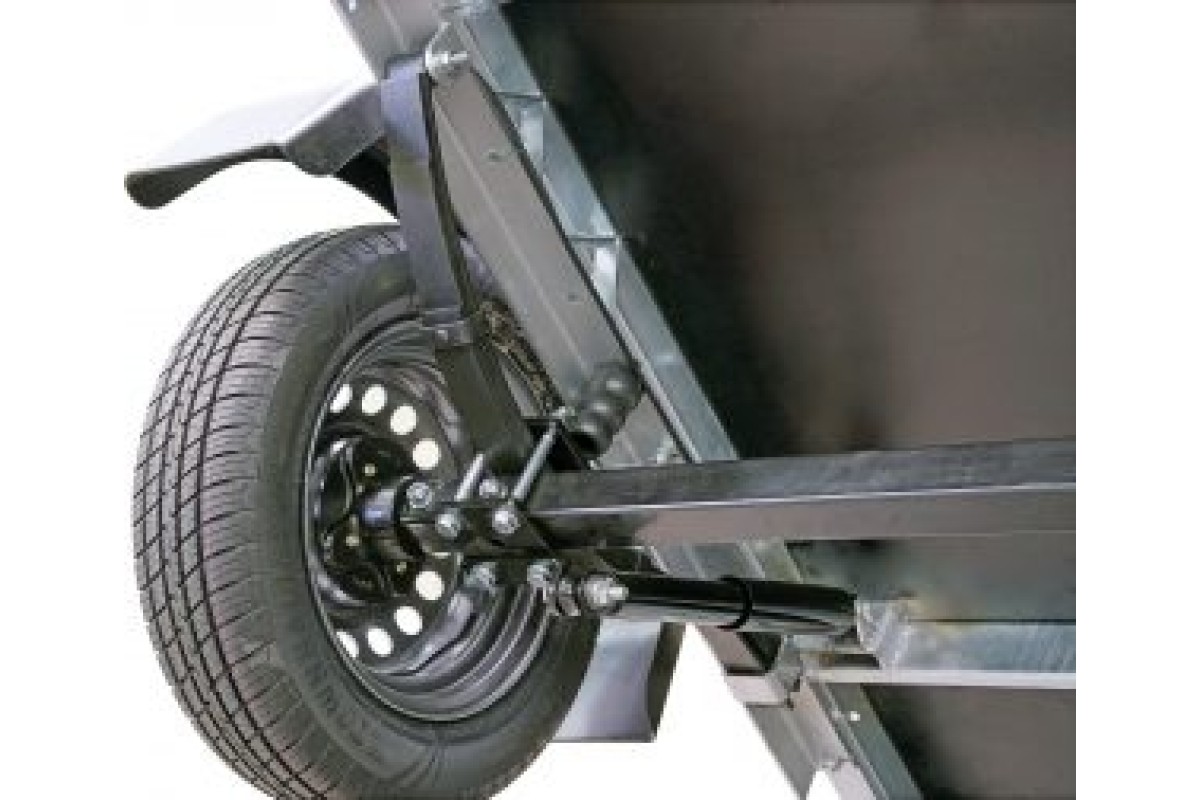

• The chassis features leaf springs and a shock absorber that ensure safe and stable driving (only in the “m18r” model),
• Additional optional accessories are offered for trailers:
  • Spare wheel mount,

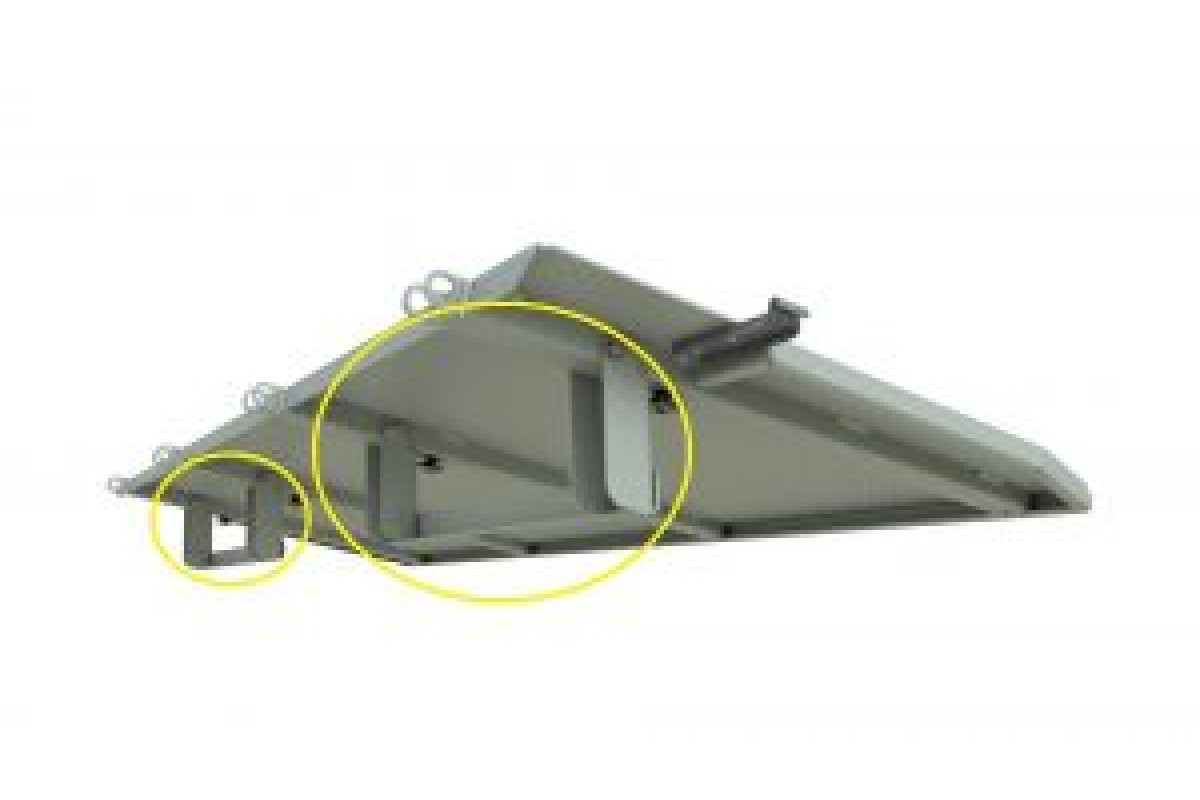

  • Trailer support (700 mm),

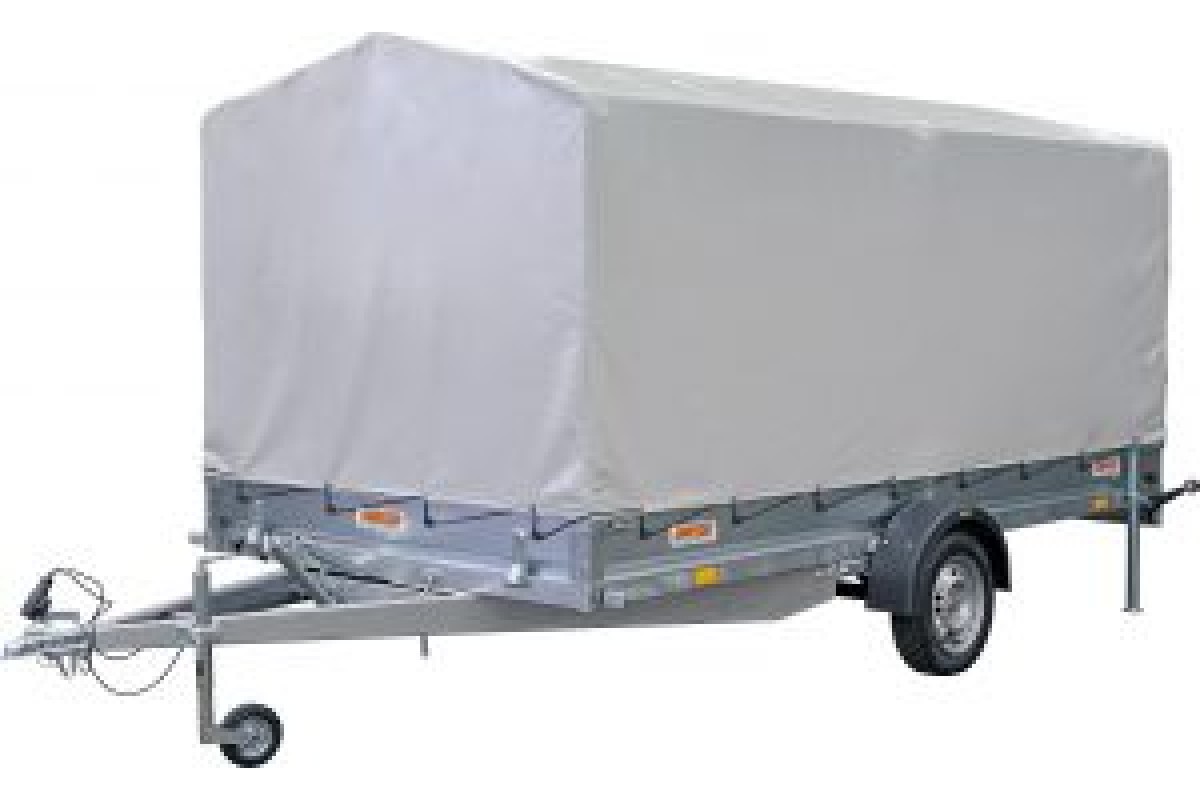

  • Tarpaulin with 1200 mm-high rack,
